Cod. HT- 100 |
| MEDIDOR DE DUREZA para Metales Estándares ASTM A 956
Certificado de Calibración
Conexión RS232C a PC
|  | Efectivo-Depósito-Transferencia $ 2.049.500.- más IVA Tarjetas Débito-Crédito |

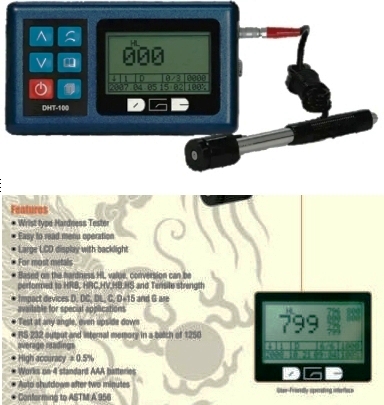

Medidor de dureza para Metales :
Muñeca tipo probador de la dureza, rango de medición 300 ~ 890HL (acero) - Gran pantalla LCD con luz de fondo - Para la mayoría de los metales - Con base en el valor de dureza HL, conversiones a HRB, HRC, HV, HB, HS y resistencia a la tracción. - Prueba en cualquier ángulo, incluso boca abajo - Conexíon RS 232 a PC y salida a la memoria interna de 1250 lecturas - Fecha y hora de presentación. - Ajuste de límites inferior y superior con pantalla bajo-alto - Alta precisión + / - 0,5% - Usa pilas estándar AAA. - Auto apagado después de dos minutos. - Conforme a la norma ASTM A 956 - Certificado de Calibración
Hardness Parameter | HL, HRC, HRB, HV, HB,HS | Measuring Range | See table below | Display | 128 x 64 LCD with backlight | Display functions D | Hardness Scale, Hardness Value, average value, impact direction, Max/Min value, Material, battery | | Within +/- 0.5% (at HLD=800) | Memory | 1250 group | Standard Impact device | D | Optional Impact Device | C / D+15 / DC / DL /G | Output | RS232 | Testable work piece | - Thickness coupled: Minimum 3 mm or more (Except with Impact device G:10mm) - Mass: 5kg or more (2-5kg on solid support ,﹤2kg with couplant paste) - Surface roughness: Ra 10 - Radius (convex/concave): Rmin=30mm or more (﹤30mm with support ring ) - Test Points: 5mm or more from the edge of the sample, 3mm or more to each of the tested points. | Battery type | 2 AAA Batteries | Operating temperature | -20℃ ~ +50℃ | Dimensions | 108mm×61mm×25mm | Weight | 200g |
Material | HL | HRC | HRB | HB | HS | HV | ST & Cast ST | 300-900 | 20.0-68.0 | 38.4-99.5 | 80-647 | 32.5-99.5 | 80-940 | CWT Steel | 300-840 | 20.4-67.1 | | | | 80-898 | Stainless | 300-800 | 19.6-62.4 | 46.5-101.7 | 85-655 | | 85-802 | GC Iron | 360-650 | | | 90-334 | | | NC Iron | 400-660 | | | 131-367 | | | Cast Alum. | 174-560 | | | 20-159 | | | Brass | 200-550 | | 13.5-95.3 | 40-173 | | | Bronzes | 300-700 | | | 60-290 | | | Copper | 200-690 | | | 45-315 | | |
SE INCLUYE :
-Unidad principal DHT-100
-Dispositivo de Impacto D -Cepillo de limpieza -Test de bloque con valor HLD -Pequeño anillo de soporte -Software y Cable -Funda de transporte -Manual de instrucciones -Certificado de Calibración | | |
